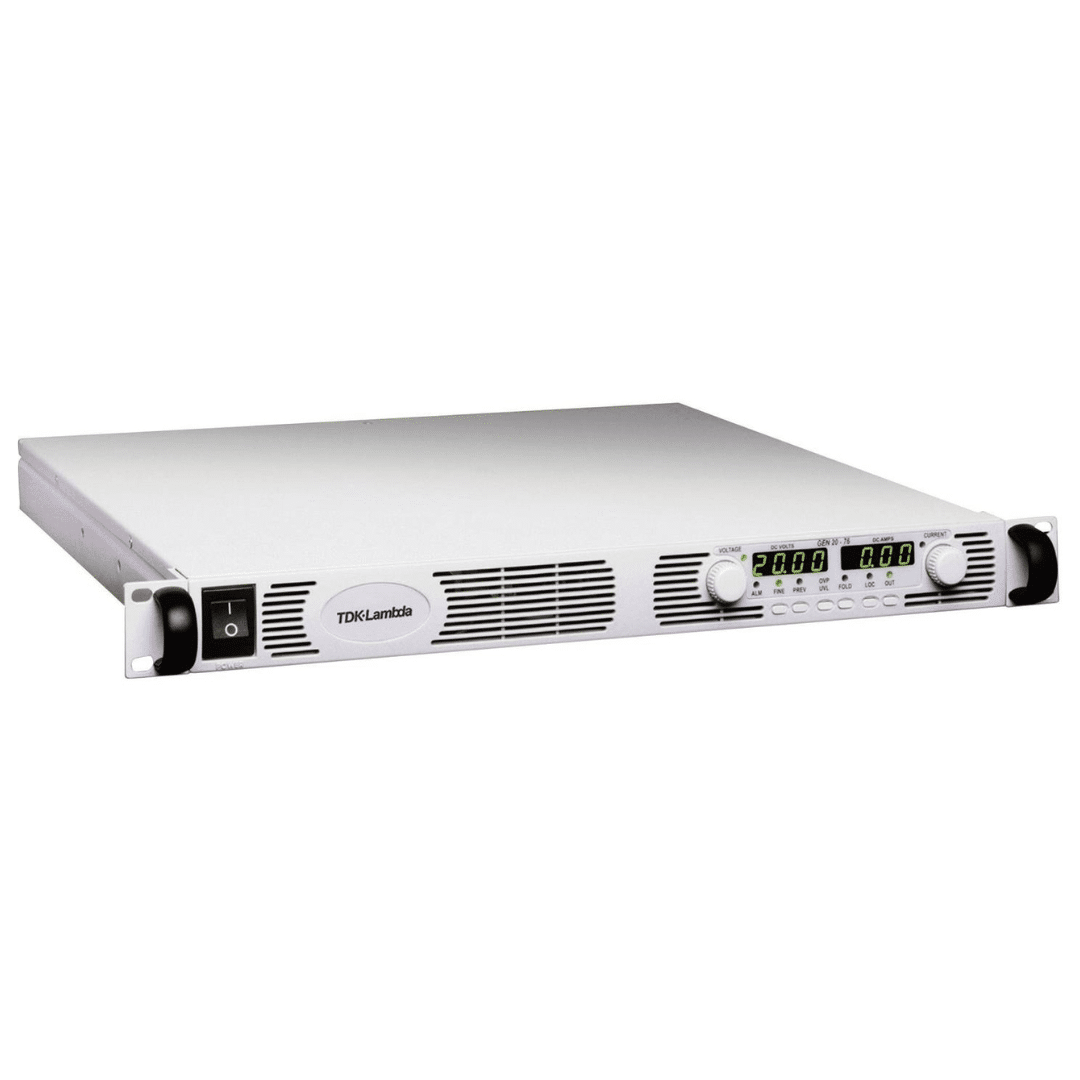

he TDK Lambda GEN150-1 is a high-performance, programmable 1500W DC power supply designed to meet the demands of various industrial, research, and development applications. It offers precise and reliable power delivery with an output voltage range of 0 to 150V and a maximum current output of 10A, allowing it to power a wide variety of loads. The GEN150-1 is part of the GEN series, known for its versatility, ease of use, and advanced features.
Features:
• Output voltage 0 to 150 V DC
• Residual ripple voltage 10mVrms
• Output current 0 to 10 A.
• Ripple current 35mArms
• Serial operation (max. 2 devices)
• Parallel operation (max. 4 devices)
• Setting for voltage / current via reliable encoders
• 1,500 watts of output power
• Wide range input 85-265 V AC
• Constant voltage operation (CV)
• Constant current operation (CC)
• Surge protection (OVP)
• Overcurrent protection (OCP)
• Undervoltage limit (OVL)
• Off / on switch of output
• Last-setting memory
• Sense
• Built-in RS-232 / RS-485 interface
• Built-in analog interface
• 1 slot for optional interface
• Device connection 230 V AC
