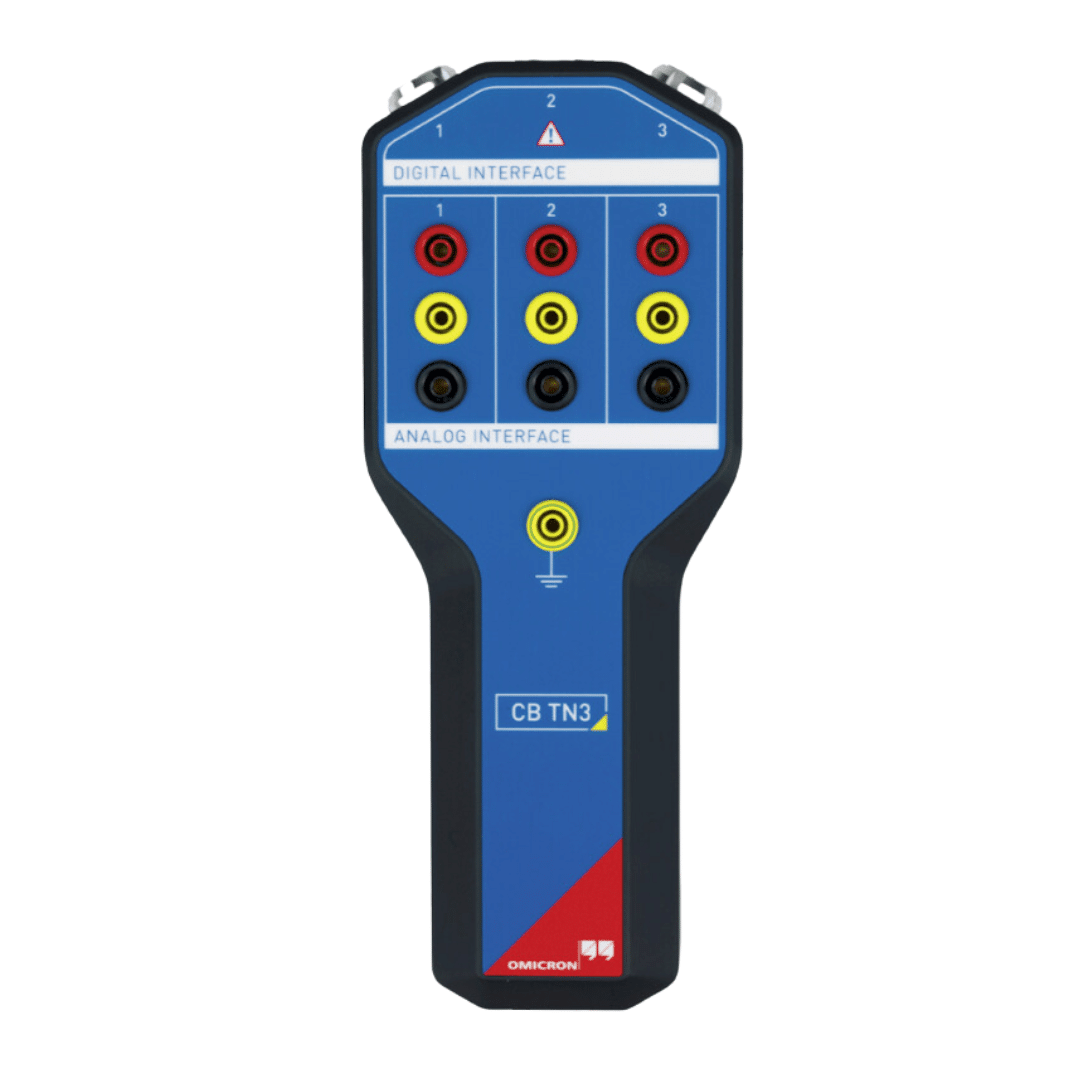

The Omicron CB TN3 is a transducer node used with the CIBANO 500 circuit breaker test system. It captures motion data from up to three linear or rotary motion transducers via three analog and three digital channels. This data is then transmitted digitally to the CIBANO 500, ensuring interference-free communication. The CB TN3 is essential for analysing circuit breakers’ performance, providing precise measurements for diagnostics and maintenance. It supports various standard transducers, making it a versatile tool for detailed motion analysis.
Features:
• Circuit breaker motion analysis — The Omicron CB TN3 provides detailed motion analysis of circuit breakers by capturing data from linear or rotary motion transducers.
• Compatibility with transducers — It can be connected to most standard linear and rotary motion sensors, enhancing its versatility.
• Fast linear motion measurement — It utilises a magnetic tape concept for quick and accurate measurement of linear motion.
• Multi-channel support — Features three analog and three digital channels for comprehensive data acquisition.
