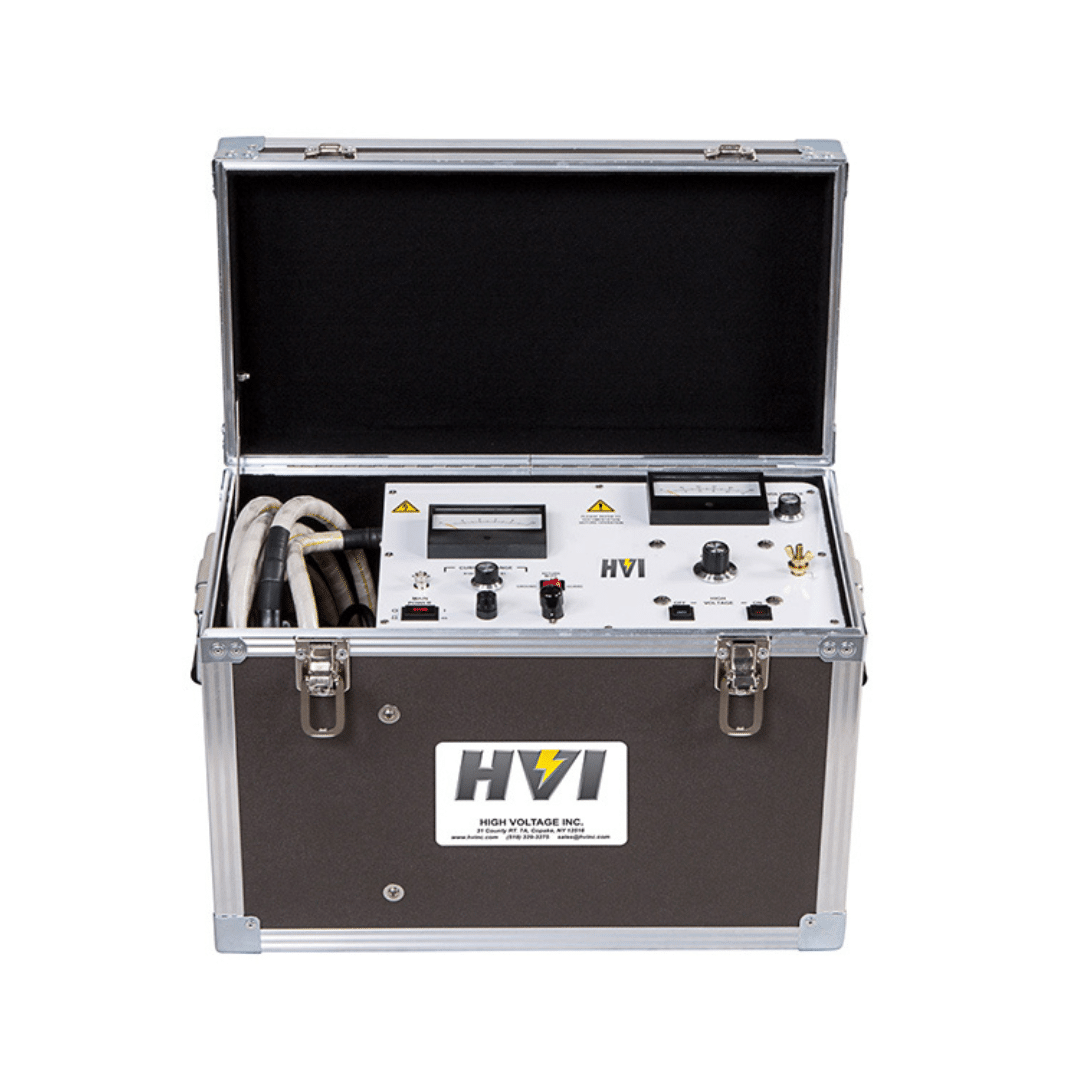

The PFT-503CM(F) AC hipot test set provides continuously adjustable output voltages for overvoltage withstand testing of the following: Switchgear, Circuit breakers, Reclosers, Vacuum bottles, Hot sticks, Motor windings and other high voltage insulation requiring AC.
Features:
• Convenient one-piece field portable design
• Secondary connected 2 Range Voltmeter: 0 – 25 / 50 kV AC
• 3 Range Current Meter: 0 – 1 mA AC with x1, x10, and x100 multipliers
• Fixed overload set to 120% of variable transformer rated output current
• Transit protected meters prevent meter damage between test sites
• Guard/Ground circuit for accurate leakage current measurement
• 20 ft shielded output and return cables
• Gapped core transformer design for capacitive load compensation
• Zero Start and External safety Interlock provisions
